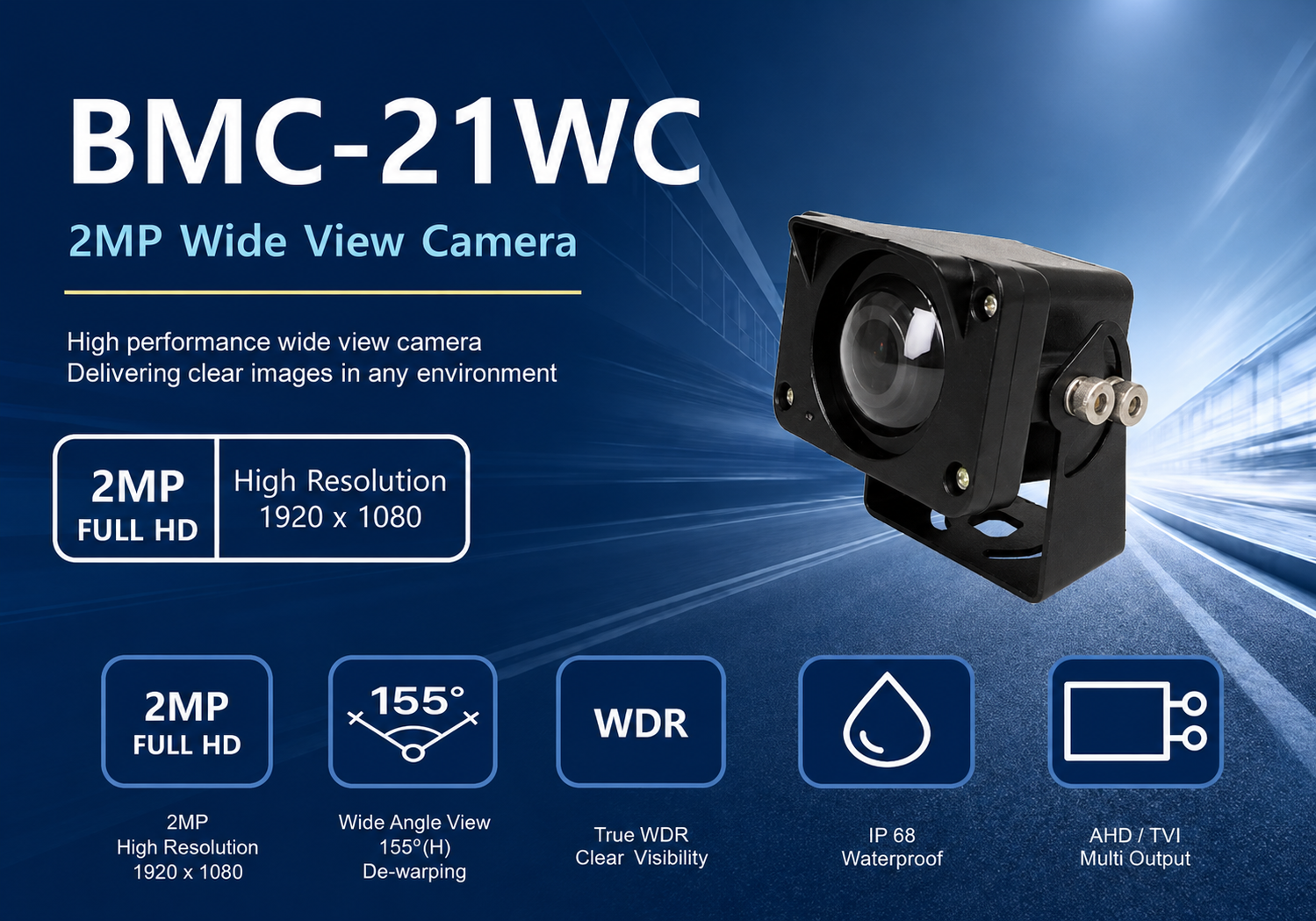

KEY FEATURES

2M SONY CMOS

1/2.8" 2Megapixel SONY CMOS
(EXMOR) delivers excellent
Image quality

Advanced DNR

3D + 2D Digital Noise Reduction
Minimizes noise and ensures
Clean images.

TRUE
WDR

True WDR

Provides clear and balanced
Images in both bright and dark
Environments.

IP68 Waterproof

Sealed Against Dust & Water

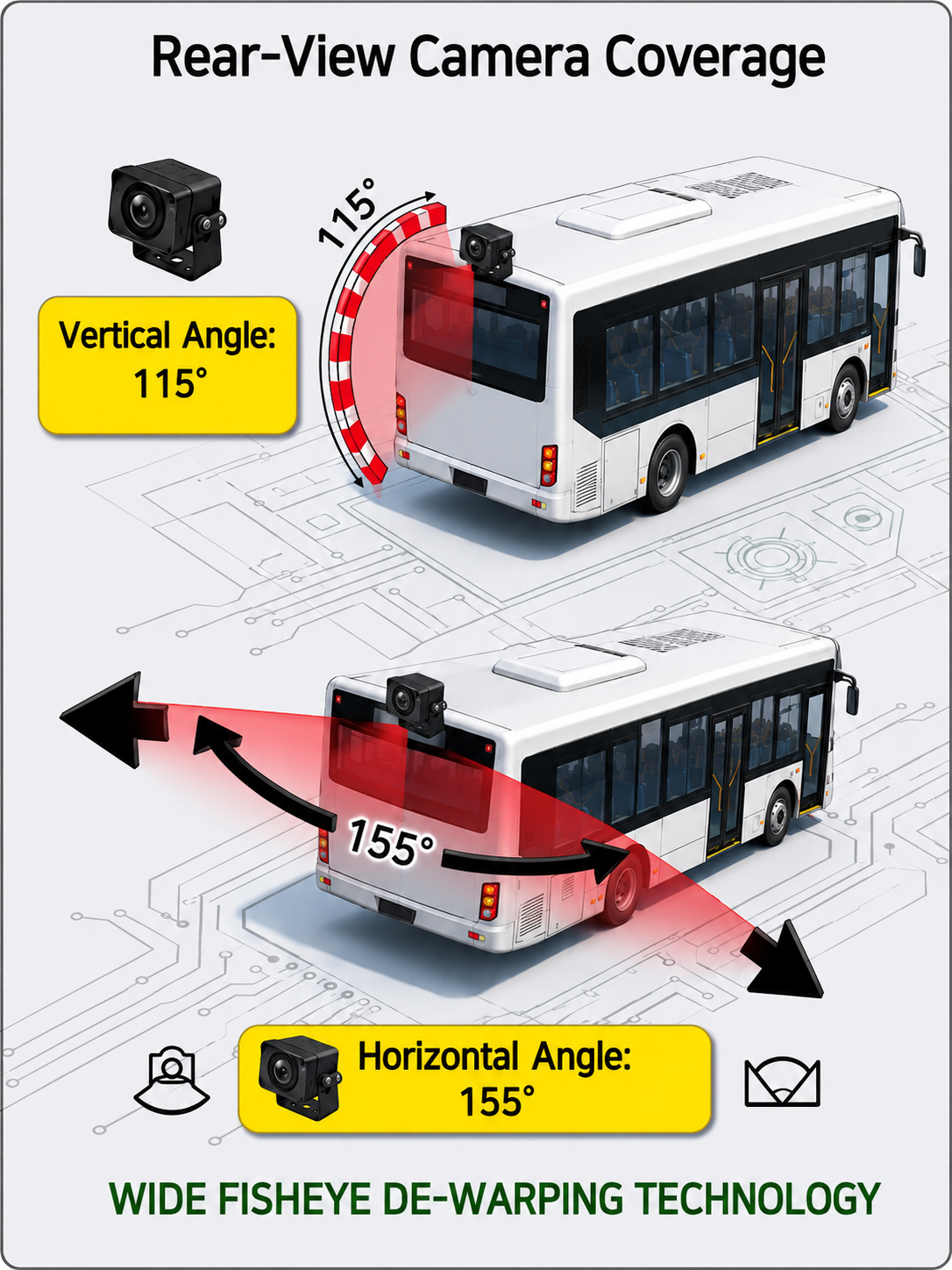

De-warping

Fisheye Correction
Distortion Correction

Multi Output

Supports TVI, AHD
Output for flexible compatibility

WIDE VIEW TECHNICAL SPECIFICATIONS

ITEM	SPECIFICATIONS
Image Sensor	1/2.8" 2Megapixel SONY CMOS (EXMOR)
Total pixels	1945(H) X 1109(V) = 2.16M pixels
Active pixels	1937(H) X 1097(V) = 2.12M pixels
Resolution	Digital : 1080p 30fps
Min. illumination	More than 0.05 lux (color, DSS off) Max Gain 72dB
Operating Temperature	-10℃ ~ +50℃ (Humidity: 0%RH ~ 80%RH)
Storage Temperature	-20℃ ~ +60℃ (Humidity: 0%RH ~ 80%RH)
S/N Ratio	More than 54dB (AGC off)
Frequency	50Hz / 60Hz
Video out	TVI / AHD
Power input (consumption)	DC12V ± 10% (100mA)
