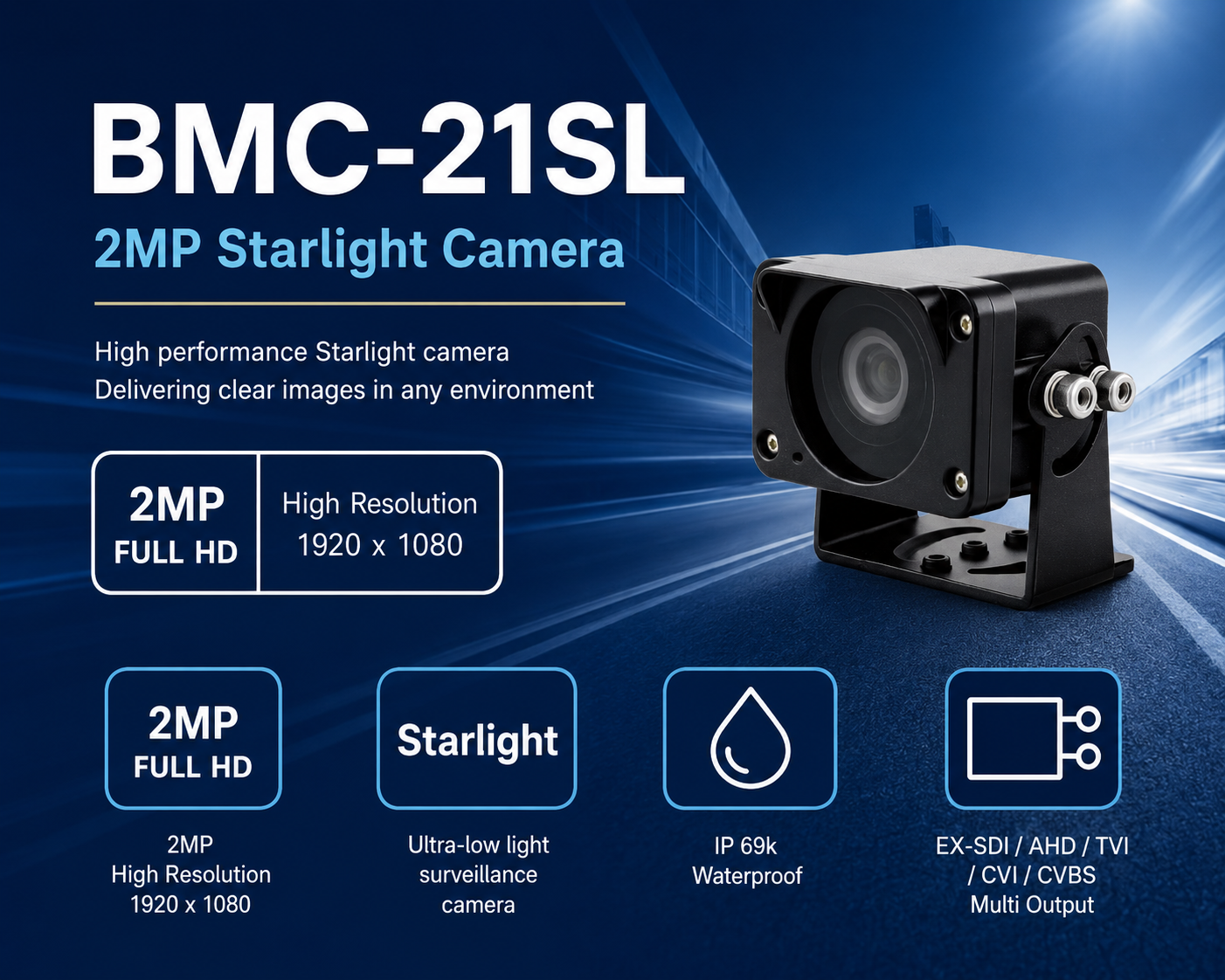

KEY FEATURES
1/2.8" 2Megapixel SONY CMOS
(EXMOR) delivers excellent
Image quality
Supports EX-SDI, HD-SDI
TVI, CVI / AHD / CVBS
Output for flexible compatibility
3D + 2D Digital Noise Reduction
Minimizes noise and ensures
Clean images.
Designed to withstand harsh
weather and high-pressure
water exposure.
Ultra-low light surveillance camera.
Next-generation Starlight Technology
turning the deepest night into
crystal-clear day.
TECHNICAL SPECIFICATIONS
| ITEM | SPECIFICATIONS |
|---|---|
| Image Sensor | 1/2.8" 2Megapixel SONY CMOS (EXMOR) |
| Total pixels | 1945(H) X 1109(V) = 2.16M pixels |
| Active pixels | 1937(H) X 1097(V) = 2.12M pixels |
| LENS | 2.9MM 4MEGA F1.4 |
| Resolution | Digital : 1080p 30fps |
| Min. illumination |
More than 0.01 lux (color, dss off) Max Gain 72dB |
| Operating Temperature | -10℃ ~ +50℃ (Humidity: 0%RH ~ 80%RH) |
| Storage Temperature | -20℃ ~ +60℃ (Humidity: 0%RH ~ 80%RH) |
| S/N Ratio | More than 54dB (AGC off) |
| Frequency | 50Hz / 60 Hz |
| Video out | EX-SDI / HD-SDI / TVI / CVI / AHD / CVBS |
| Power input (consumption) | DC12V ± 10% (80mA ~ 120mA) |
