KEY FEATURES
2M SONY CMOS
1/2.8" 2Megapixel SONY CMOS
(EXMOR) delivers excellent
Image quality
Multi Output
Supports EX-SDI, HD-SDI
TVI, CVI / AHD / CVBS
Output for flexible compatibility
Advanced DNR
3D + 2D Digital Noise Reduction
Minimizes noise and ensures
Clean images.
Built-in audio (c-mic)
In-Vehicle Optimized Audio System
INFRARED (IR) LEDs
940nm Invisible IR B/W Mode
TECHNICAL SPECIFICATIONS
| ITEM | SPECIFICATIONS |
|---|---|
| Image Sensor | 1/2.8" 2Megapixel SONY CMOS (EXMOR) |
| Total pixels | 1945(H) X 1109(V) = 2.16M pixels |
| Active pixels | 1937(H) X 1097(V) = 2.12M pixels |
| LENS | 2.8MM, 3.6MM, 6MM, …. |
| Resolution | Digital : 1080p 30fps |
| Min. illumination | More than 0lux (IR LED ON) |
| Operating Temperature | -10℃ ~ +50℃ (Humidity: 0%RH ~ 80%RH) |
| Storage Temperature | -20℃ ~ +60℃ (Humidity: 0%RH ~ 80%RH) |
| S/N Ratio | More than 54dB (AGC off) |
| Frequency | 50Hz / 60Hz |
| Video out | TVI / AHD / CVBS |
| Power input (consumption) | DC12V (IR OFF : 80mA ON : 220mA) |

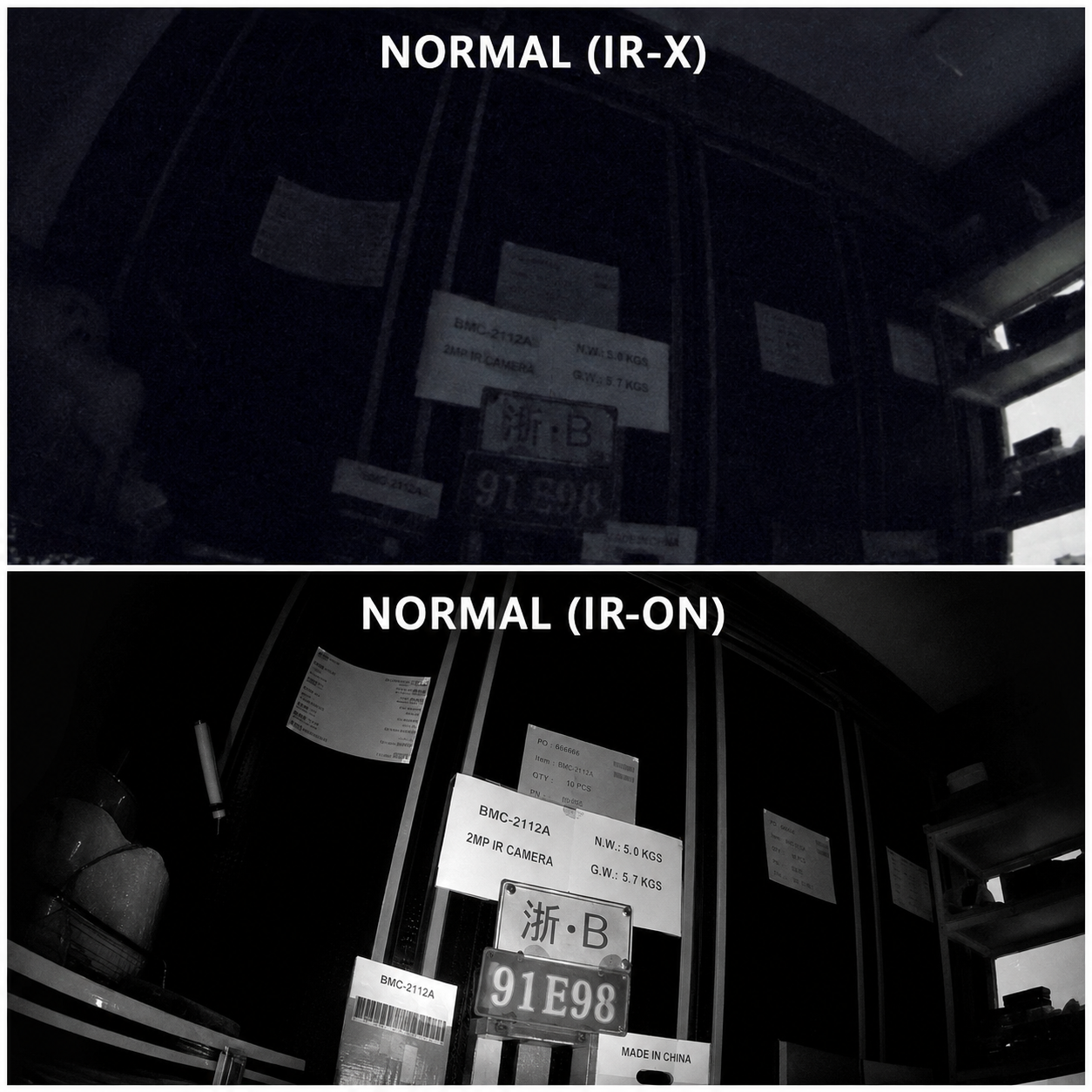

INFRARED PERFORMANCE

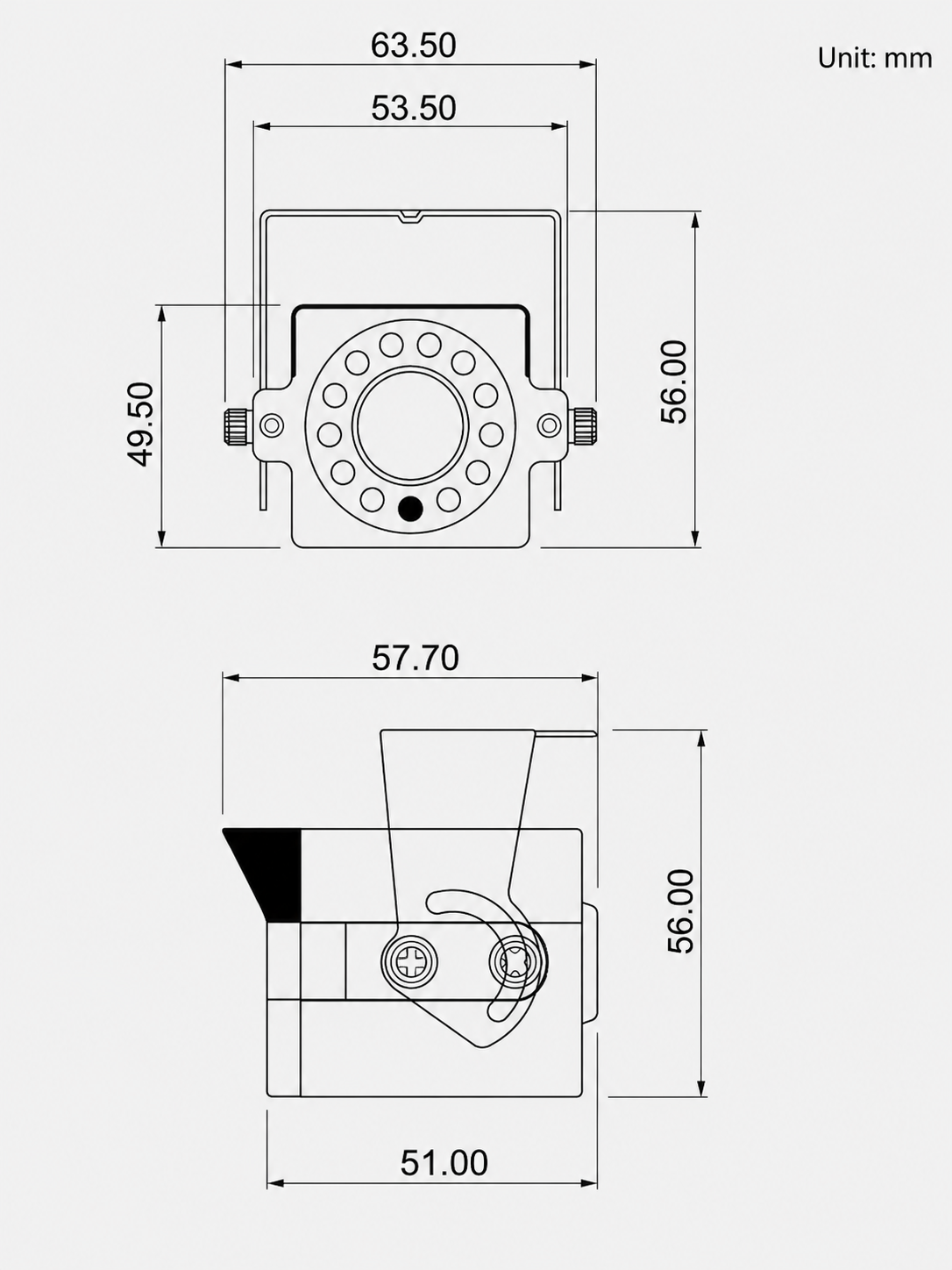

DIMENSIONS
